UV lamp GPHHA1554T12 (UVL-38750)
The bactericidal UV lamp UVL-38750 manufactured by us with a power of 750 watts used for lamp replacement: GPHHA1554T12, GPHHA1554 T12 750W in water disinfection systems.
- quartz sleeves for the lamp GPHHA1554T12
- power supply units for UV lamps GPHHA1554T12
- installations and accessories
We will manufacture equipment according to your specifications.
The inner surface of the lamp is coated with the UVL-LivePower+ compound. This technology allows for the prevention of rapid power loss in UV radiation, significantly extending the effective lifespan of the lamp.
More about the UVL-LivePower+ technology
Possible markings:GPHHVA1554T12, GPHHVA 1554T12, GPHHVA 1554 T12L, GPHHVA1554T12L/4, GPHHVA 1554T12L/4, GPHHVA 1554 T12L/4, GPHHVA1554T12L/4, GPHHVA 1554T12L/4, GPHHVA 1554 T12L/4, GPHHA1554T12L, GPHHA 1554T12L, GPHHA 1554 T12L, GPHHA1554T12L/4, GPHHA 1554T12L/4, GPHHA 1554 T12L/4, GPHHA1554T12L/4, GPHHA 1554T12L/4, GPHHA 1554 T12L/4.
| Lamp type | Ozone-free quartz amalgam low-pressure UV lamp |
|---|---|
| Wavelength range | 254 Nm |
| Wattage | 750 w |
| Operating current | 8.0 A |
| Output UVC Watts | 230 w |

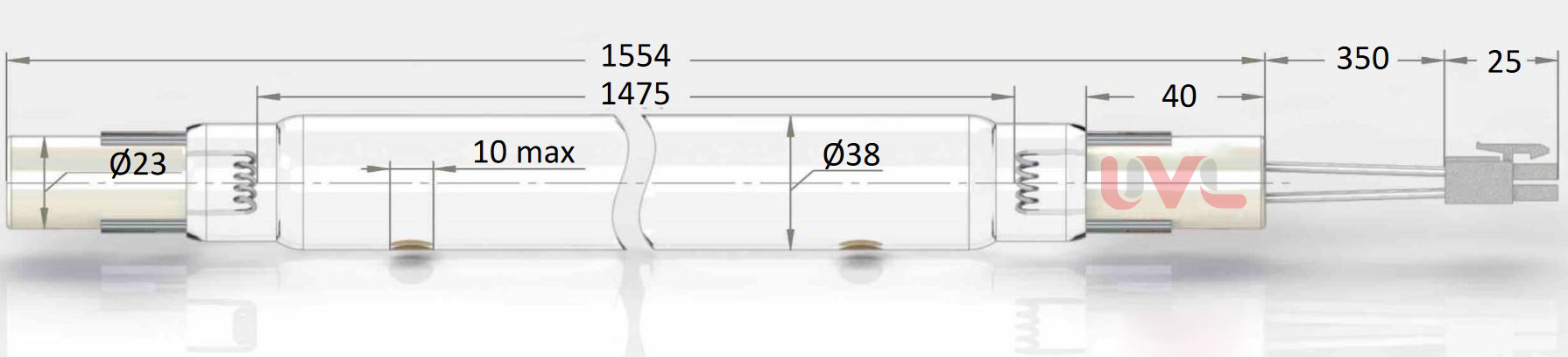

| Total length | 1554 mm |
| Arc length | 1475 mm |
| Lamp Quartz Diameter | 38 mm |
| Base diameter | 23 mm |
| Rated Life | 14000 hrs |
We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.
- The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
