UV lamp UV-C Model 0017/01 280W (UVL-19280)

The bactericidal UV lamp UVL-19280 manufactured by us with a power of 280 watts designed to replace the lamp UV-C Model 0017/01 280W in water disinfection systems.

You can also buy:

  • quartz sleeves for the lamp UV-C Model 0017/01 280W
  • power supply units for UV lamps UV-C Model 0017/01 280W
  • установки и комплектующие

We will manufacture equipment according to your specifications.

The inner surface of the lamp is coated with the UVL-LivePower+ compound. This technology allows for the prevention of rapid power loss in UV radiation, significantly extending the effective lifespan of the lamp.

More about the UVL-LivePower+ technology

Possible markings: 280w model0017/01 gps uv-c, model0017/01, GPHHA1148T6L.

Price
On request
in stock
Check with manager

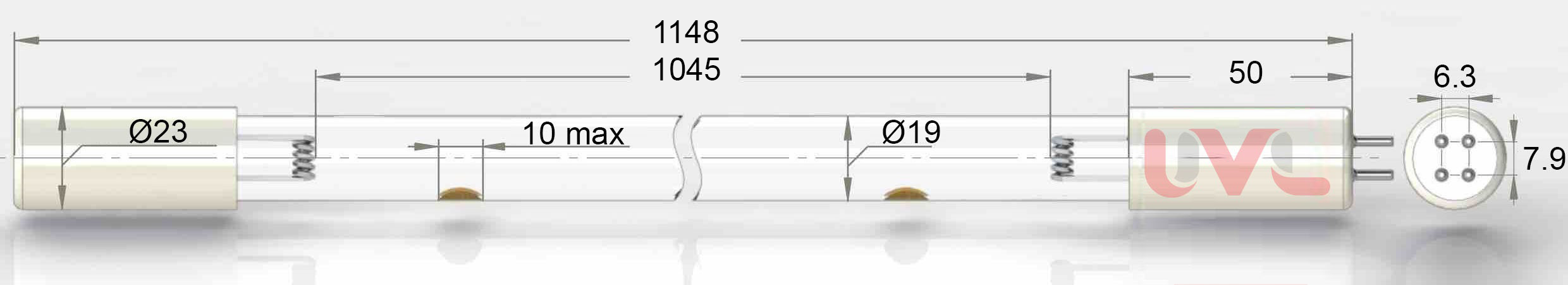

Technical Characteristics
Lamp type Ozone-free quartz amalgam low-pressure UV lamp
Wavelength range 254 Nm
Wattage 280 w
Operating current 2.1 A
Output UVC Watts 90 w
Total length 1150 mm
Arc length 1070 mm
Lamp Quartz Diameter 19 mm
Base diameter 23 mm
Rated Life 16000 hrs
Warranty and Delivery

We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.

Calculate
  • The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
We have over 20 years of experience in manufacturing.
Our equipment is installed in over 10,000 industrial facilities worldwide.
