UV lamp UV-C Model 004 15W (UVL-15 KL)
The bactericidal UV lamp manufactured by us UVL-15 KL with a power of 15.9 watts designed to replace the lamp UV-C Model 004 15W in water disinfection systems.
- quartz sleeves for the lamp UV-C Model 004 15W
- power supply units for UV lamps UV-C Model 004 15W
- установки и комплектующие
We will manufacture equipment according to your specifications.
The inner surface of the lamp is coated with the UVL-LivePower+ compound. This technology allows for the prevention of rapid power loss in UV radiation, significantly extending the effective lifespan of the lamp.
More about the UVL-LivePower+ technology
Possible markings: 15W Model 004

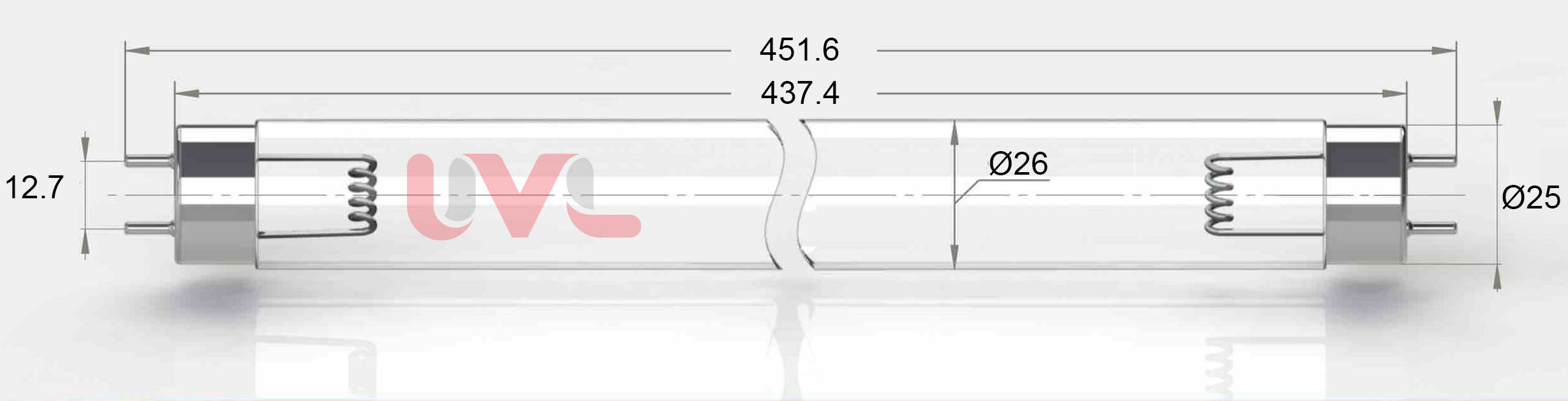

Technical Characteristics
| Lamp type | Ozone-free mercury low-pressure UV lamp |
|---|---|
| Wavelength range | 254 Nm |
| Wattage | 15.9 w |
| Operating current | 0.33 A |
| Output UVC Watts | 4.9 w |
| Total length | 451.6 mm |
| Arc length | 437.4 mm |
| Lamp Quartz Diameter | 26 mm |
| Base diameter | 25 mm |
| Rated Life | 9000 hrs |
Warranty and Delivery
We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.
- The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
We have over 20 years of experience in manufacturing.
Our equipment is installed in over 10,000 industrial facilities worldwide.
