UV lamp TUV 75W HO (GH 75T8 G13)
The bactericidal UV lamp TUV 75W HO designed to replace the lamp GH 75T8 G13 in water disinfection systems.
You can also buy:
- quartz sleeves for the lamp TUV 75W HO.
- power supply units for UV lamps TUV 75W HO.
- installations and components.
We will manufacture equipment according to your specifications.
Possible markings:GH 75T8 G13.

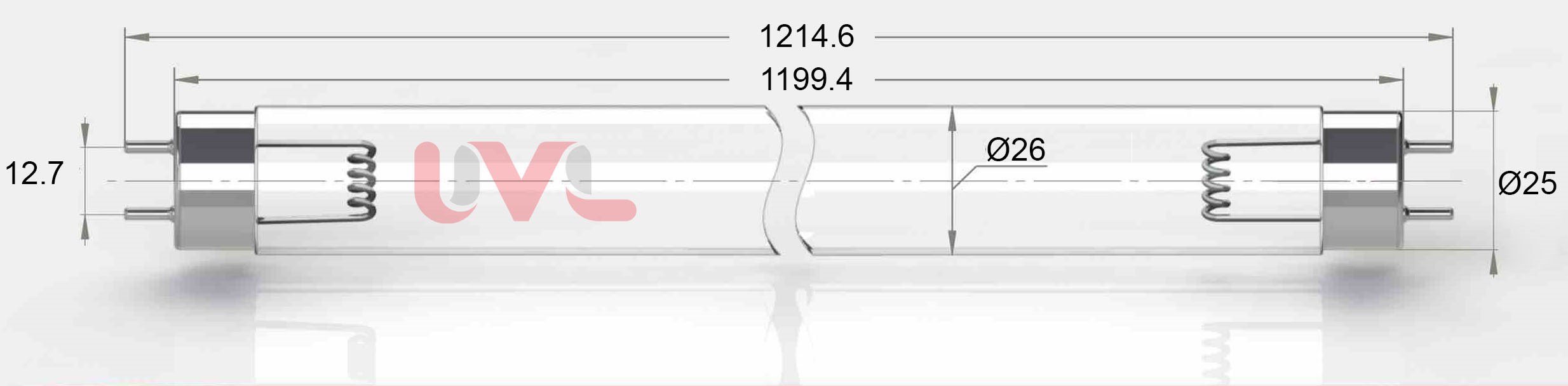

Technical Characteristics
| Lamp type | Ozone-free mercury low-pressure UV lamp |
|---|---|
| Wavelength range | 254 Nm |
| Wattage | 75 w |
| Operating current | 0.85 A |
| Output UVC Watts | 27 w |
| Total length | 1214.6 mm |
| Arc length | 1199.4 mm |
| Lamp Quartz Diameter | 26 mm |
| Base diameter | 25 mm |
| Rated Life | 9000 hrs |
Warranty and Delivery
We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.
- The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
We have over 20 years of experience in manufacturing.
Our equipment is installed in over 10,000 industrial facilities worldwide.
