UV lamp HNS 75W (75 Watt)

The bactericidal UV lamp HNS 75W designed for operation in water disinfection systems.

You can also buy:

  • quartz sleeves for the lamp HNS 75W.
  • power supply units for UV lamps HNS 75W.
  • installations and components.

We will manufacture equipment according to your specifications.

Possible markings:DB 75, DB75, DB-75, ДБ 75, ДБ-75, ДБ 75, TUV 75 HO, TUV 75W HO G13, TUV 75W HO, TUV 75 Watt HO G13, LTC755T8, ДБМ 75, ДБМ-75, ДБ 75М, ДБ-75, UVC 75W T8 G13, HNS 75W G13 25X1 OSRAM, LTC 75 T8 G13, LIH 75W.

Price
On request
in stock
Check with manager
Technical Characteristics
Lamp type Ozone-free mercury low-pressure UV lamp
Wavelength range 284 Nm
Wattage 75 w
Operating current 0.85 A
Output UVC Watts 27 w

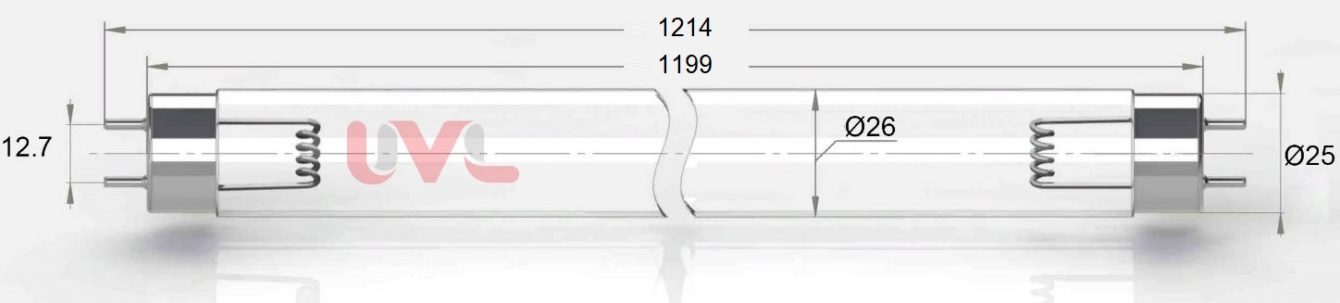

Total length 1214.6 mm
Arc length 1199.4 mm
Lamp Quartz Diameter 26 mm
Base diameter 25 mm
Rated Life 9000 hrs
Warranty and Delivery

We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.

Calculate
  • The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
We have over 20 years of experience in manufacturing.
Our equipment is installed in over 10,000 industrial facilities worldwide.
