Bactericidal UV lamp UVL-32470 STEP (GPHHA1125T10L, GPHHVA1125T10L)
The bactericidal UV lamp UVL-32470 STEP manufactured by us designed to replace lamps GPHHA1125T10L, GPHHVA1125T10L in water disinfection systems.
You can also buy:
- quartz sleeves for the lamp UVL-32470 STEP.
- power supply units for the lamp UVL-32470 STEP.
- installations and components.
We will manufacture equipment according to your specifications.
The inner surface of the lamp is coated with the UVL-LivePower+ compound. This technology allows for the prevention of rapid power loss in UV radiation, significantly extending the effective lifespan of the lamp.
More about the UVL-LivePower+ technology
Possible markings: GPHHVA1125T10L, GPHHVA 1125T10L, GPHHVA 1125 T10L, GPHHVA1125T10L/4, GPHHVA 1125T10L/4, GPHHVA 1125 T10L/4,GPHHA1125T10L, GPHHA 1125T10L, GPHHA 1125 T10L, P 32530, P-32530.
| Lamp type | Оzone-free quartz amalgam low-pressure UV lamp |
|---|---|
| Wavelength range | 254 Nm |
| Wattage | 470 ± 18 w |
| Operating current | 5 A |
| Output UVC Watts | 152 ± 10 w |

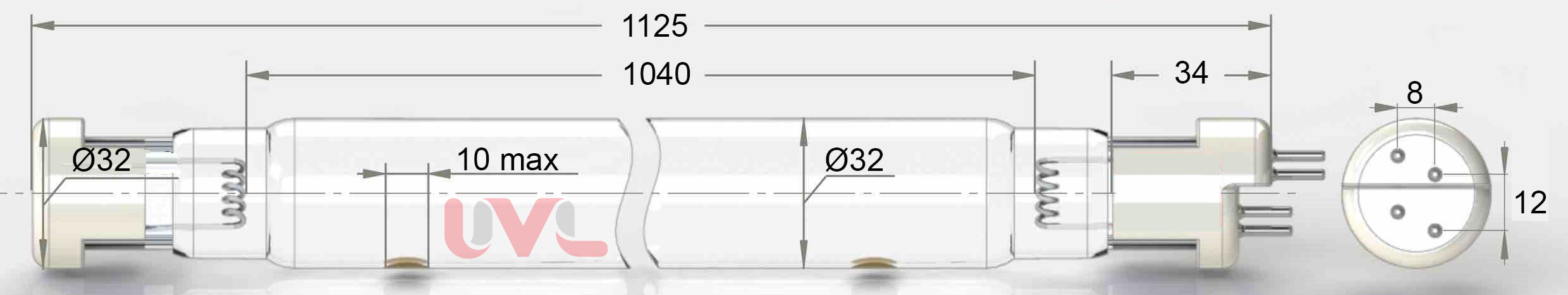

| Total length | 1125 mm |
| Arc length | 1040 mm |
| Lamp Quartz Diameter | 32 mm |
| Base diameter | 32 mm |
| Rated Life | 14000 hrs |
We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.
- The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
