Bactericidal UV lamp UVL-15 (GPH303T5L)
The bactericidal UV lamp UVL-15 produced by our company is designed for lamp replacement GPH303T5L in water disinfection systems.
You can also buy:
- quartz sleeves for the lamp UVL-15.
- power supply units for the lamp UVL-15.
- installations and components.
We will manufacture equipment according to your specifications.
The inner surface of the lamp is coated with the UVL-LivePower+ compound. This technology allows for the prevention of rapid power loss in UV radiation, significantly extending the effective lifespan of the lamp.
More about the UVL-LivePower+ technology
Possible markings:GPH303T5L, GPH 303 T5L, GPH 303T5L,GPH303T5L, GPH 303T5L, GPH 303 T5L, GPH303T5L/4, GPH 303T5L/4, GPH 303 T5L/4, GPH303T5L/4P, GPH 303T5L/4P, GPH 303 T5L/4P, GPH303T5L, GPHV 303 T5L, GPH303T5L/4, GPH 303T5L/4, GPH 303 T5L/4, GPH303T5L/4P, GPH 303T5L/4P, GPH 303 T5L/4P.
| Lamp type | Ozone-free mercury low-pressure UV lamp |
|---|---|
| Wavelength range | 254 Nm |
| Wattage | 15 w |
| Operating current | 0.425 A |
| Output UVC Watts | 4.5 w |

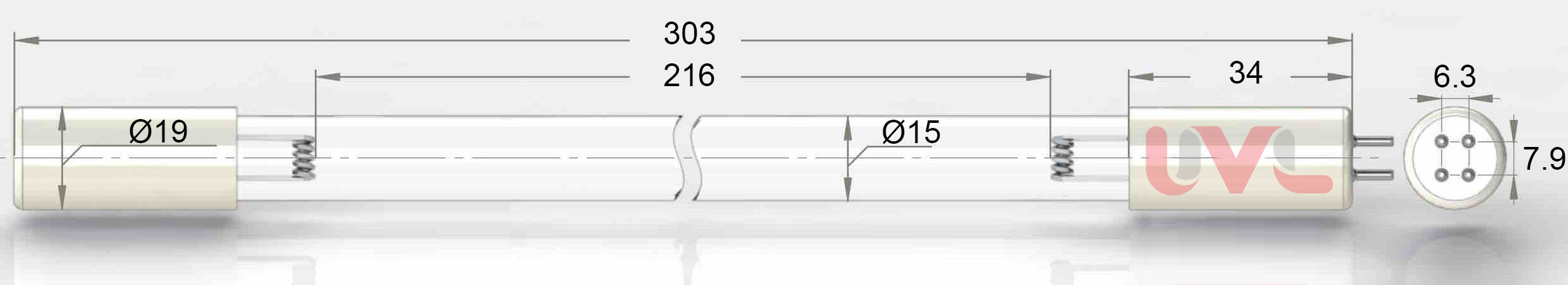

| Total length | 303 mm |
| Arc length | 216 mm |
| Lamp Quartz Diameter | 15 mm |
| Base diameter | 19 mm |
| Rated Life | 11000 hrs |
We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.
- The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
