UVL-AQUA 120

The flow-through ultraviolet sterilizer produced by our company is designed for water disinfection.

Suitable for UV treatment:

  • drinking water;
  • in swimming pools;
  • in ponds;
  • wastewater.

We will manufacture equipment according to your specifications.

Three nozzles on the body of the unit allow for the choice between convenient types of connection: "T" or "N".

A reliable inspection window made of brass allows for visual monitoring of the UV lamp's operation.

Selection of the unit based on the application area

Price
On request
in stock
Check with manager
Technical Characteristics
Lamp type Ozone-free mercury low-pressure UV lamp
Capacity (domestic drinking water) 9 m³/hour
Capacity (wastewater) 4 m³/hour
Wattage 120 w
Diameter of branch pipes 2" male (outside)

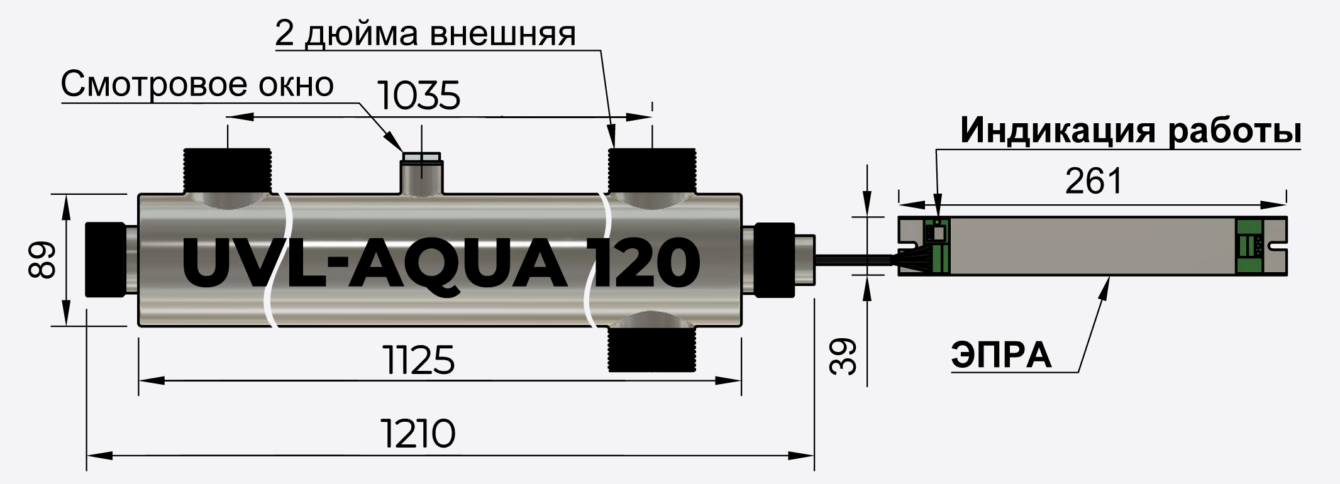

Dimensions 1210×89×89 mm
Lamp operation indication on the power supply unit yes
Error indication on the power supply unit yes
Viewing window for visualization of lamp operation yes
Number of lamps 1
Hour meter no (retrofitting possible)
Control cabinet no (retrofitting possible)
Washing unit no (retrofitting possible)
Warranty and Delivery

We provide reliable delivery globally using a reputable transportation company. There is an option for door-to-door delivery or delivery to a pickup point. Warranty for the integrity during transportation is in effect.

Calculate
  • The warranty service life of UV lamps depends on the lamp type and is specified in the product passport. The number of switching on/off cycles affects the service life of the lamp. The recommended number is indicated in the passport. After the service life has elapsed, the lamp needs to be replaced (the light emitted from the product does not guarantee the preservation of the bactericidal effect). In case of premature failure, we guarantee lamp replacement and delivery to your address at our expense. Only a photo of the lamp will be required for confirmation, no additional paperwork is necessary.
We have over 20 years of experience in manufacturing.
Our equipment is installed in over 10,000 industrial facilities worldwide.
