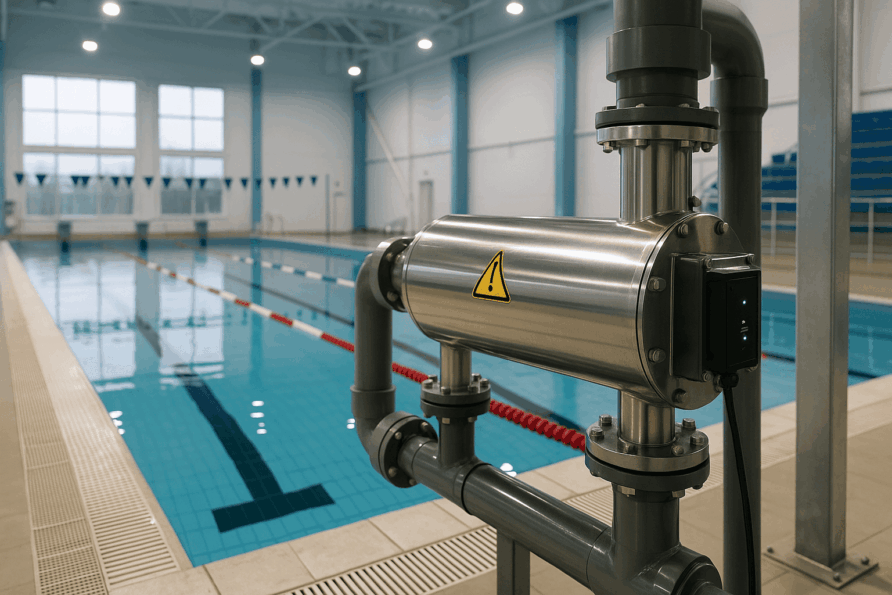

In spring 2023, a major sports facility initiated the first stage of its infrastructure upgrade by installing a modern ultraviolet water disinfection system in its indoor pool. The facility hosts daily training sessions, children’s swim programs, and various competitions, so maintaining high water hygiene is essential. After careful evaluation, the selected solution was the UVL Aqua Medium 150, engineered for high-efficiency bactericidal disinfection without chemical treatment.
Why UVL Aqua Medium 150?
The choice was based on system compatibility, operational load, and microbiological performance standards. The UVL Aqua Medium 150 met all criteria:
- Flow capacity: up to 150 m³/h
- Lamp power: 2400W medium-pressure UV disinfection lamp
- UV dose output: 60 mJ/cm², effective for pathogen inactivation
- Operating pressure: up to 6 bar — compatible with most circulation systems
- Material: corrosion-resistant AISI 316 stainless steel, with a quartz sleeve-protected lamp
- Connection: Designed for integration into pipelines with a 160 mm diameter
The system ensures stable, high-output performance even under intensive pool operation.
Installation: Phase One
Following the contract signing and equipment delivery, the installation team began work onsite in close coordination with facility engineers. Tasks included:
- Pipeline integration
- Connection to the main control cabinet
- Setup of flow monitoring and automatic UV shutoff in case of circulation loss
Great attention was given to sealing, electrical safety, lamp alignment, and proper hydraulic placement to prevent cavitation and ensure uniform UV exposure inside the sterilization reactor.
Commissioning and Testing
Once assembled, the system undergoes calibration and testing. The setup phase involves:
- Pressure and seal integrity verification
- UV dose output testing
- Programming automation and failsafes
- Operator training on system maintenance and safety protocols
The client receives a complete documentation package including test records, wiring diagrams, and operation manuals.
Benefits for the Facility
After commissioning, the pool will benefit from:
- Reliable chemical-free UV disinfection
- Stable microbiological water quality
- Reduced use of chlorine, coagulants, and other reagents
- Continuous, safe, and environmentally friendly operation throughout the season
Whether you need UV lamps, full-scale water disinfection systems, or assistance with integrating UV sterilizers into your existing infrastructure — we provide turnkey solutions customized for your system’s specifications.
